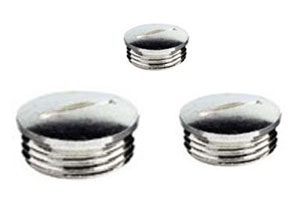

Round Head Stop Plug
We manufacture All Types Of Brass Cable Glands Accessories like Round Head Stop Plug, PVC shrouds, Earth tags, Brass conduit lock nuts, Hex Reducer, Round Reducer, Brass Stop Plug, Hexagonal Stop Plug, Round Adaptor as per specifications and Drawing.
Metric Round Head Stop Plug
| Size | M12 to M63 |
| Material | Free Cutting Brass |
| Application |
Stop Plug used to close thread entries ormeans of sealing & stopping unused thread entries in flame proof enclosures. |
| Treatment | Also available in nickel plated brass. |
| Accessories |
Thread Seal or O "Ring". |
| Thread Size | L | T | H | D | |
| Short | Long | ||||
| M 12 | 7.50 | 5.00 | 12.00 | 8.00 | 14.00 |
| M 16 | 8.00 | 5.00 | 12.00 | 12.25 | 18.00 |
| M 20 | 9.50 | 6.50 | 12.00 | 16.25 | 22.00 |
| M 25 | 11.00 | 7.00 | 15.00 | 21.00 | 28.00 |
| M 32 | 12.00 | 8.00 | 15.00 | 28.00 | 35.00 |
| M 40 | 13.00 | 8.00 | 15.00 | 35.00 | 45.00 |
| M 50 | 15.00 | 10.00 | 15.00 | 45.00 | 55.00 |
| M 63 | 15.00 | 10.00 | 15.00 | 57.50 | 67.00 |

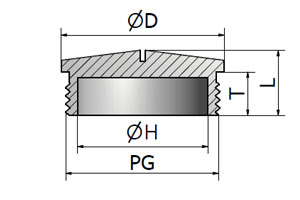

PG Round Head Stop Plug
| Size | PG7 to PG48 |
| Material | Free Cutting Brass |
| Application |
Stop Plug used to close thread entries or means of sealing & stopping unused thread entries in flame proof enclosures. |
| Treatment | Also available in nickel plated brass. |
| Accessories | Thread Seal or O "Ring". |
| Thread Size | L | T | H | D | |
| Short | Long | ||||
| PG 7 | 8.00 | 5.00 | 12.00 | 10.00 | 14.00 |
| PG 9 | 9.00 | 6.00 | 12.00 | 12.50 | 17.00 |
| PG 11 | 9.00 | 6.00 | 12.00 | 15.25 | 20.00 |
| PG 13 | 9.50 | 6.50 | 12.00 | 17.00 | 22.00 |
| PG 16 | 9.50 | 6.50 | 12.00 | 18.75 | 24.00 |
| PG 21 | 11.00 | 7.00 | 12.00 | 24.00 | 30.00 |
| PG 29 | 12.00 | 8.00 | 12.00 | 32.00 | 39.00 |
| PG 36 | 15.00 | 9.00 | 15.00 | 42.00 | 50.00 |
| PG 42 | 16.00 | 10.00 | 15.00 | 48.00 | 57.00 |
| PG 48 | 16.00 | 10.00 | 15.00 | 52.50 | 54.00 |
