Wiping Cable Glands


We have developed a huge range of Wiping Cable Glands which are manufactured from high quality brass material compliances with BS Standard BS 6121 and can be supplied to our client at affordable prices.


  • wiping cable glands

Technical Data:


Gland Size Dia. over metal sheath of Cable Dimension in mm
A B ØC ØD E F G H ØJ R
X 12 to 51 137 90 60 19 90 90 66 66 12 12
Y 25 to 78 155 95 108 32 114 123 95 86 14 14

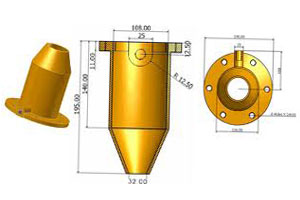

Wiping Gland “Z” :


  • wiping z cable glands
Gland Size Dia. over metal sheath of Cable Dimension in mm
A B ØC ØD E F ØJ
Z 25 to 94 195 140 108 32 190 100 14

Material :


CDA 360 DZR Brass BS 2874 - CZ 131 CW 614 N, EN 12164 BS 2874 - CZ 114 BS 2874 - CZ 115 c377, c380, cz122, BS 2874 - CZ 121 Pb3 CZ 122 UNS C36000, en 12165 – cw617n, cw612n, cuzn40pb2 & cuzn39pb2.


Function :


Used indoor conditions inner ring frames positive armour clamp an earth continuity.


Application :


For Use with SWA, Plastic and Rubber (Elastomer) sheathed cables.


Features :


Brass Wiping Glands Brass Wiping Cable Glands for Electrical Transformers For indoor and outdoor use with panels boards, electrical instruments and transformers switchgears electrical accessories control panels etc.
