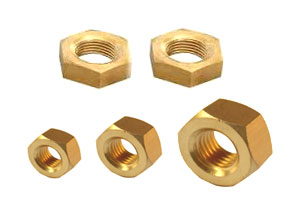

Brass DIN 934 Hex Nuts


We are leading manufacturer, supplier and exporter of Brass DIN 934 Hex Nuts, Stainless Steel Nuts, DIN Standard 7168 Hex Bolts, Torque Nuts, DIN Head Nuts, Full Nuts etc. mainly supplying to international markets over the world.


  • brass din 934 hex nuts
d s max. e min. m max.
 M2  4  4.32  1.6
 M3  5.5  6.01  2.4
 M4  7  7.66  3.2
 M5  8  8.79  4
 M6  10  11.05  5
 M8  13  14.38  6.5
 M10  17  18.9  8
 M12  19  21.1  10
 M14  22  24.49  11
 M16  24  26.75  13
 M18  27  29.56  15
 M20  30  32.95  16
 M22  32  35.03  18
 M24  36  39.55  19

Material :


Brass to BS 2874 / 2872, c380, cz122, en 12165, cw617n, cw612n, cuzn40pb2 & cuzn39pb2, CZ 121 Pb3 CZ 122 UNS C36000 CDA 360 DZR, CZ 131 CW 614 N EN 12164 BS 2874 - CZ 114 BS 2874 - CZ 115 c377.


Threads :


ISO Metric, BSW, BA, BSF, UNC, UNF UNEF 2mm 3mm 4mm 5mm 6mm 8mm 10mm 12mm 16mm 20mm 25mm 32mm 1/8" 5/32" 3/16" 1/4" 5/16" 3/8" 1/2" 5/8" 3/4" 1" 11/8" 11/4" 11/2" 13/4" 2" M2 M2.5 M3 M4 M5 M6 M8 M10 m12 m16 M20.


Finish :


Brass natural, Electro-Tinned, Nickel etc.
